In mechanical design and industrial applications, tiny components often play a pivotal role. Canted coil springs are such fascinating small mechanical devices. Its unique coil design gives it multiple functions, from high-performance sealing to complex connection solutions. This spring is widely used in medical, aviation, automotive and other fields, and has demonstrated excellent performance and reliability. Let's start with actual cases and data to explore the story behind this spring.
Technical advantages of canted coil springs

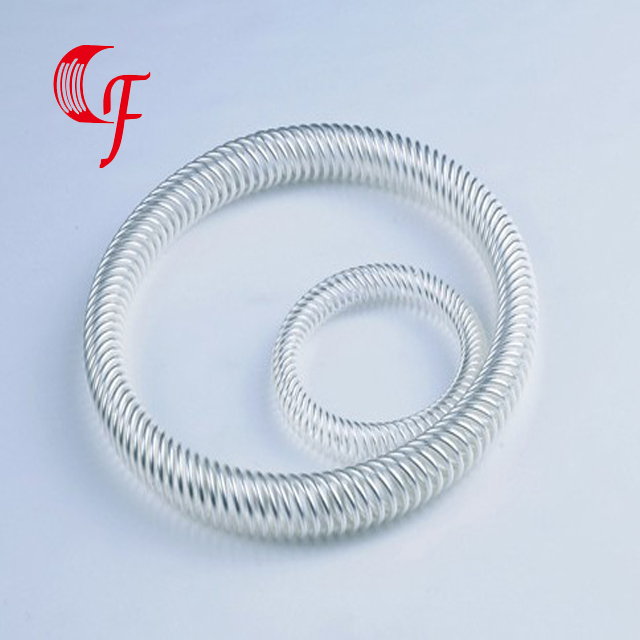

Unlike traditional spiral springs, canted coil springs form a special structure with tilted coils that can evenly distribute stress in the axial and radial directions. It is this geometric design that gives it constant load performance, even under high cycle or dynamic conditions.
Taking the oil and gas industry as an example, canted coil springs have become a core component of high-performance seals. For example, in downhole drilling equipment, spring seals are used to withstand extreme heat and pressure. In this case, the reliability of the equipment directly determines the success of drilling.
More interestingly, the self-compensating design of the canted coil spring can adapt to slight misalignment of the hardware and maintain its sealing performance. This feature not only reduces failures caused by wear or clearance, but also significantly reduces the maintenance frequency of equipment, saving valuable time and cost for industrial operations.
Innovative solutions for medical devices
Driven by modern medical technology, the application of canted coil springs in surgical instruments and implantable devices is particularly important. For example, multi-contact connectors commonly used in pacemakers and neurostimulators rely on the reliable electrical performance of canted coil springs. The low resistance of this spring ensures the accuracy of signal transmission while reducing the possibility of equipment failure.
In addition, canted coil springs also play a key role in anti-electromagnetic interference. Medical devices often need to operate in a strong electromagnetic environment, and electromagnetic interference may affect their data transmission or functional stability. Through optimized design, this spring can shield interference in a wide frequency range and provide effective protection for the equipment.
It is worth mentioning that during the epidemic, the sliding lock assembly used for ventilators also used canted coil springs. This spring not only ensures efficient connection of the equipment, but also keeps it stable during high-frequency disassembly and assembly.
Driving innovation: emerging applications in the automotive industry
With the popularity of electric and hybrid vehicles, the automotive industry's demand for lightweight and high-performance components continues to increase. Canted coil springs are making a name for themselves in this field due to their versatility.
Take battery connectors, for example, where these springs simultaneously perform locking, retaining and conducting functions. By reducing the number of individual parts, the use of springs helps manufacturers achieve weight reduction. This not only optimizes the energy efficiency of the vehicle, but also improves manufacturing efficiency and reduces assembly costs.
In addition, in door lock systems, canted coil springs provide a reliable locking and release mechanism that maintains its excellent performance even after long-term use. This durability is particularly important for automotive parts that need to withstand multiple opening and closing tests.
Extreme performance in aerospace and defense
In the demanding aerospace and defense field, canted coil springs have withstood the test of extreme environments. From deep cold to high temperatures, these springs can consistently perform well. For example, they are used in sealing and connecting components in spacecraft to ensure the reliability of equipment under high vibration and rapid temperature differences.
The choice of materials is also key to its success. High-performance materials such as stainless steel and nickel-based alloys provide excellent corrosion resistance and fatigue resistance. The extremely low failure rate of these springs further proves their reliability in high-risk environments.
Cross-domain technological change
The diverse applications of canted springs demonstrate the infinite possibilities of small mechanical components in technological innovation. From medical devices to aerospace to the automotive industry, this spring is reshaping the technological boundaries of various industries with its unique performance. Its long life, self-compensating design and superior material selection not only bring cost savings, but also provide users with excellent reliability.
Behind this development, the pursuit of details and the continuous breakthroughs in materials science are inseparable. In the future, with the introduction of emerging materials and intelligent manufacturing technologies, canted springs are expected to make further progress in miniaturization, durability and intelligence, and continue to provide technical support for more fields.
Although the canted spring is small, its impact should not be underestimated. As an engineer or designer, perhaps we can get inspiration from these seemingly simple components and explore more possibilities. As this delicate spring shows, sometimes it is not necessarily the huge machines that change the world, but the small miracles hidden in them.
