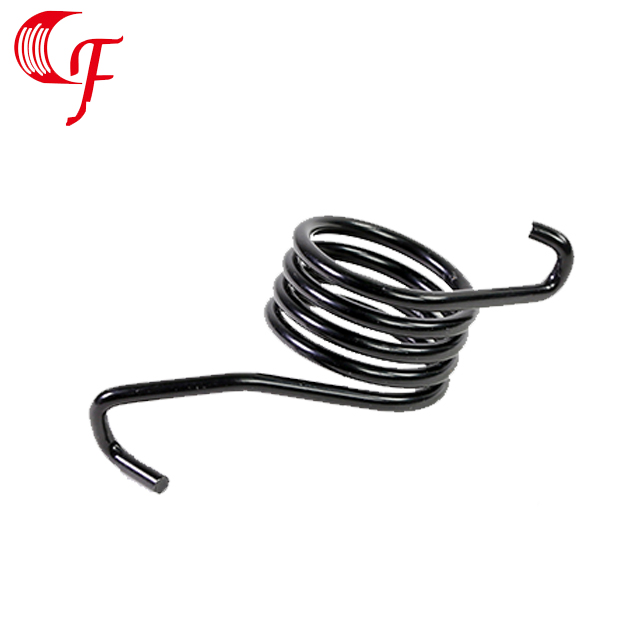

Automobile Pedal Torsion Springs: Essential Components for Precision and Durability
In the automotive industry, every component plays a crucial role in ensuring the vehicle performs optimally. Among these, the Automobile Pedal Torsion Spring stands out as an often-overlooked yet essential part of the brake, accelerator, and clutch pedal systems. These springs are responsible for providing the necessary return force, ensuring that each pedal returns to its original position after use. In this article, we explore the various aspects of Automobile Pedal Torsion Springs, from their design and material choices to their impact on driving experience and future developments in automotive engineering.
The Role and Function of Pedal Torsion Springs
Pedal torsion springs operate on a simple yet effective principle: they generate a rotational force when the pedal is pressed and help it return to its resting position once released. This functionality is crucial for brake, accelerator, and clutch pedals, where the consistent and smooth return of the pedal is necessary for optimal vehicle control.
For instance, in the braking system, when the driver presses the brake pedal, the torsion spring compresses and stores potential energy. When the pressure is released, the spring helps the pedal return to its neutral position, ready for the next engagement. The smooth return of the pedal enhances the driver's ability to feel in control, ensuring the vehicle's brake system responds precisely to the driver's inputs.
Materials and Durability
The materials used in pedal torsion springs are key to ensuring their long-term reliability. Since these springs are subjected to frequent compression and extension cycles, they must be able to withstand mechanical fatigue while maintaining their elasticity. High-strength steel, including stainless steel and alloy steels, is commonly used for manufacturing these springs due to its durability and resistance to corrosion.
One example is seen in a certain electric vehicle manufacturer, which uses high-grade stainless steel for its torsion springs. These springs are tested to last over 1 million cycles without significant performance degradation. The company also applies a corrosion-resistant coating to ensure the springs can withstand challenging environments, such as high humidity or exposure to road salts, ensuring a long service life even in adverse conditions.
In testing, a leading automotive components research group found that torsion springs made from high-quality stainless steel can endure over 500,000 cycles of compression and expansion without showing significant fatigue. This ensures that the springs in most passenger vehicles will maintain their performance for the typical lifespan of the car, making them highly reliable.
Customization in Size and Design
Automobile pedal torsion springs are not one-size-fits-all; they must be designed to match the specific needs of each vehicle's pedal system. The size, shape, and torque specifications of the spring are tailored to the dimensions and weight of the pedals, as well as the required force to achieve the desired level of feedback and control.
For instance, a certain sports car manufacturer utilizes custom-designed torsion springs for its accelerator and brake pedals. These springs are carefully sized to provide a precise amount of resistance and rebound force, which is critical for the fast response times expected in high-performance driving. The springs are designed to handle specific torque levels and return the pedals to their resting position smoothly, enhancing the overall driving experience.
The size of the spring is crucial for ensuring that the force needed to press the pedal aligns with the driver's expected level of comfort and control. In a study published by the Automotive Engineering Society, it was found that pedal force sensitivity significantly impacts driver comfort and control, with poorly calibrated springs leading to user dissatisfaction.
Installation and Maintenance
The installation of pedal torsion springs requires careful attention to ensure that the springs are correctly positioned in the pedal assembly. Misalignment or improper installation can result in inefficient pedal operation, which might lead to poor feedback or malfunctioning pedals. As such, manufacturers ensure that the springs are installed securely, often using a combination of standardized mounting systems like screws or clips to hold the springs in place.
For instance, a leading manufacturer of commercial vehicles has designed a straightforward installation system for its torsion springs. The system incorporates a unique mounting mechanism that allows quick replacement of worn-out springs without the need for extensive disassembly. This feature reduces maintenance time, allowing technicians to replace springs more efficiently, which ultimately reduces vehicle downtime.
In terms of maintenance, periodic inspection of the springs is necessary to ensure that they continue to function correctly. Regular wear and tear can reduce the spring's ability to generate the required force, leading to pedal issues. Manufacturers recommend replacing springs after a certain number of cycles to maintain optimal pedal performance.
Impact on Driving Experience
The design and functionality of pedal torsion springs have a direct impact on the overall driving experience. A well-designed spring provides feedback that helps drivers feel in control of the vehicle. This is especially important in high-performance vehicles, where precise pedal feel is crucial for safe and effective driving.
In a recent survey conducted by an automotive user experience group, 80% of drivers preferred cars with pedals that provided smooth, consistent feedback. In contrast, vehicles with poorly calibrated pedal springs, which were either too stiff or too soft, resulted in drivers feeling less confident and in control. For instance, certain luxury sedans have been equipped with carefully calibrated pedal springs that offer optimal resistance, providing a comfortable driving experience that enhances control without causing fatigue.
The smooth and predictable return of the pedal ensures that the driver can focus on the road without worrying about irregular pedal movements, which might otherwise lead to delayed responses in critical situations. As a result, manufacturers invest heavily in the design of these components to ensure a high level of driver satisfaction.
Innovation and Future Trends
As the automotive industry moves towards electric vehicles (EVs) and autonomous driving technologies, pedal systems are also evolving. The traditional mechanical pedal systems that rely on torsion springs are being augmented or replaced by electronic sensors and actuators in some modern vehicles. However, torsion springs still play a vital role in maintaining a natural and intuitive driving experience in many vehicles.
A certain electric vehicle manufacturer is currently exploring lightweight alloys and composite materials for their pedal torsion springs to reduce the overall weight of the vehicle. These innovations help improve the car's efficiency and performance while maintaining the necessary pedal feel for the driver. As the industry continues to innovate, it is likely that pedal systems will become even more integrated with the vehicle’s electronic systems, offering new ways to enhance both performance and comfort.
Conclusion
Pedal torsion springs are a vital yet often underappreciated component in modern vehicles. Their role in ensuring the smooth, reliable return of pedals directly impacts vehicle performance, driving comfort, and safety. With the increasing demands for durability, precision, and customization in the automotive industry, these springs continue to evolve. Manufacturers are exploring new materials, design techniques, and integration with emerging technologies to meet the needs of the next generation of vehicles. As a result, pedal torsion springs will remain a cornerstone of automotive design, ensuring that drivers continue to experience control and comfort, whether on a daily commute or a high-speed drive.
